Tutorial - Getting familiar with Visual IDE
[ All Languages » »  IDE]

Total Hit ( 9186)

Rate this article:     Poor     Excellent

 Submit Your Question/Comment about this article



In this article we will look at the new exciting features of Visual 2003 IDE.

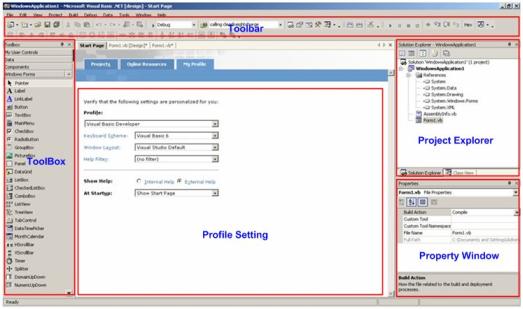

Main window

Visual IDE provides several layout options to provide simulated environment from previous versions. You can select different profile for keyboard or window scheme. The following screen shows main screen.

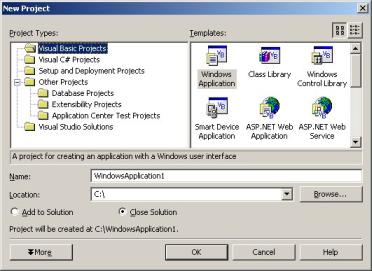

Creating New Project

There are several new project types added in Some important project types are

Windows Application : Form based application. Similar to VB6 Standard Exe.
Class Library : Project that contains set of classes and compiles in a DLL which can be used by other .Net Application. Similar to VB6 ActiveX Dll project but Class Library produces .Net Dll instead of COM Dll.
Windows Control Library : Project to create one or more windows controls. This is similar to User Control Project type in VB6. Web Application : Create browser based application. Web Service : Create a web service project.
Web Control Library : Create a server control to be placed on Web Forms.
Console Application : Create an application with Character based user interface. This is new for VB6 programmers.
Windows Service Application : A project that will create a windows service.

Windows Form Designer

Let's take a look at WinForm designer which is quite familiar to VB6 developers. You can have same drag n drop functionality in too. now shows you controls in Component tray if controls are invisible at runtime.

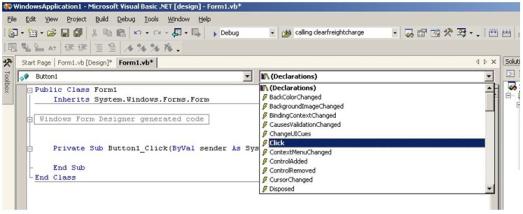

Code Window

Code window is similar to previous version on VB. One main new feature is "#Region Directive#". You can define regions in your code and then you can collapse or expand the region. Visual Studio also shows [+] for each Class, Procedure and General Declaration Block so you can hide unnecessary blocks. This is very handy while working with large project. Note that when you add a winform IDE will create a region "Windows Form Designer generated code" and this region is updated when you add/remove or change controls on the form.

Just like VB6 also supports intellisense. intellisense feature is improved to show Exit Sub, Exit Function ...Exit Try. also automatically put block end statement. for example if you type "If .. Then" will automatically put "End if".

Solution Explorer

Visual has improved solution explorer. You can either switch to file view or class view. In file view you can include or exclude files or folders. You can also click on show hidden files to view all files.

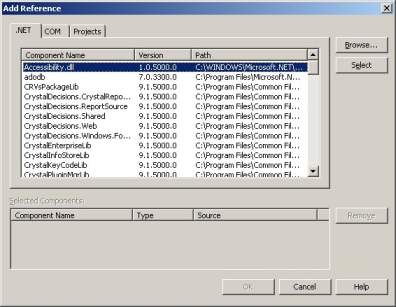

Add Reference Dialogbox

Just like VB6 we also have "Add Reference" dialogbox in By default five references (System, System.Data, System.Drawing, System.Windows.Forms, System.XML) added when you create a new winform application. To add extra reference right click on the references folder in the solution explorer (file view) and then coose your reference dll.

To add Component you can use Add component dialogbox. To open add component dialogbox right click in toolbox and choose Add/remove Item.

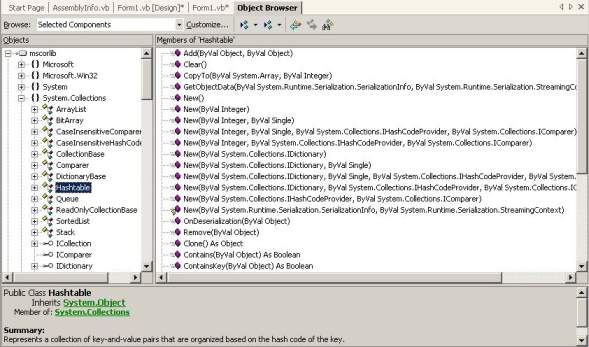

Object Browser Object browser is same as VB6 object browser. This is very powerful tool to find methods, properties, classes etc. You can analyze method parameters description using this tool.

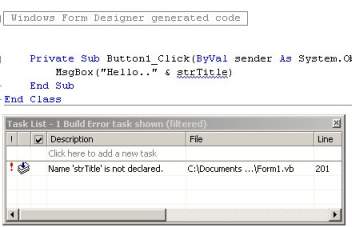

Task List

This is another handy tool to document your pending tasks or to find all errors, warnings etc. IDE displays errors in task list. One very important feature in is developer can see errors in tasklist in almost real time as they type in code window (ohhh thats kooollllll). You don’t have to compile to find your syntax errors. Just keep your eyes on task list and you will see all your coding errors before you run your program.

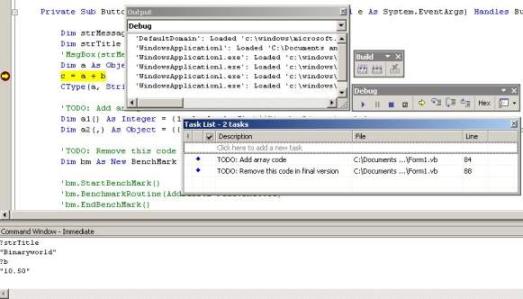

Command Window/Immediate Window

You can use command window to execute some IDE commands. For example you can type the following command to open Add new item dialogbox.

Click here to copy the following block

You can use command window to debug runtime expressions or variables. You can switch to command mode by just typing the following command

Click here to copy the following block

. You can switch to Immediate mode by typing the following command

Click here to copy the following block

. When command window is in immediate mode then caption changes to Command Window - Immediate Window.

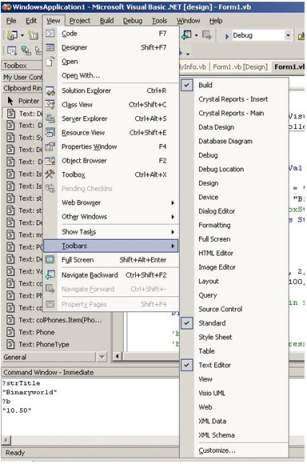

Toolbars in

Macro Support in

This is another new feature in You can record and play sequence of actions.

Setup and Deploy tools

Now you don’t need any 3rd party installer program to create professional setup for your application. You can also customize setup by writing your own code during setup. We will see more about Setup and Deploy tools in "Setup and Deployment" chapter.


So now you are familiar with environment. I have tried to cover important features in this article so still many features are not covered here. I hope you are enjoying this tutorial series.
